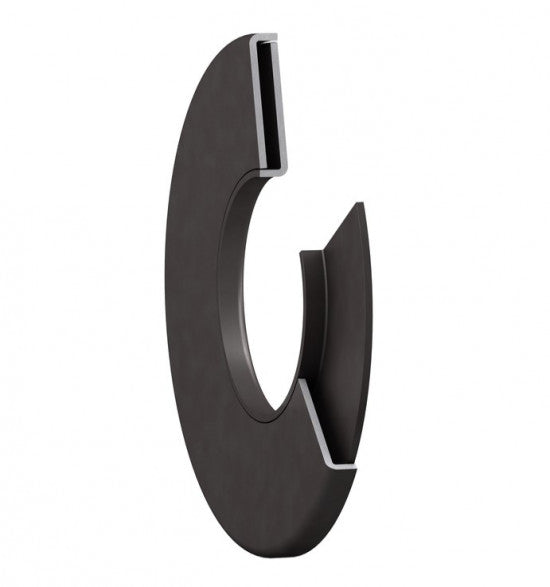

SKF Z 000 Sealing Washer
€1,71
Unit price
/
Unavailable
Description
Description
SKF Z type sealing washers create effective labyrinth seals that can be used in a wide range of applications. They provide cost-effective solutions to many sealing problems. Their use is primarily recommended for simple bearing arrangements exposed to demanding operating conditions. The effectiveness of the sealing is influenced by the number of washers installed. Depending on the degree of contamination and the desired relubrication interval, up to four sets of sealing washers can be mounted directly next to each other. Sealing washers can also be combined with other seals. Standard Z washers are available ... and for difficult operating conditions, the labyrinth of the washer is complemented by felt - type Z ... F.
Parameters
Parameters

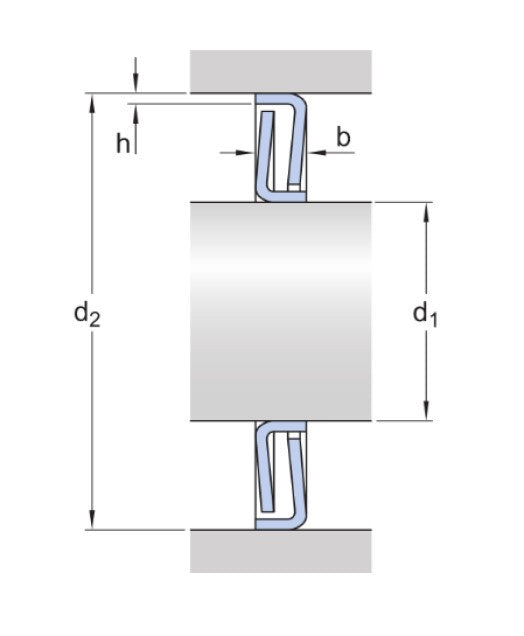

Diameter d1 (mm):
10
Diameter d2 (mm):
26
Width B (mm):
4
Width B (mm):
4
Sealing:
labyrinthine
Type:
sealing washer
Height H (mm):
1
Designation:
Z 000
