SKF SIQG 12 ESA Gelenkkopf
€100,51
Unit price
/
Unavailable
Description
Description

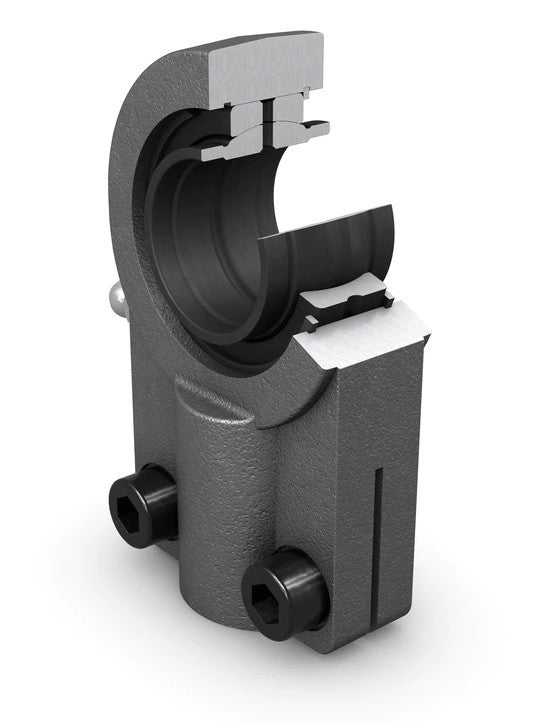

SIQG 12 ESA SKF Gelenkkopf

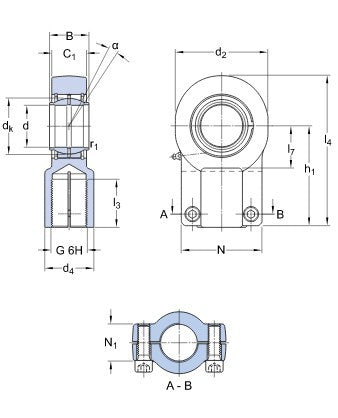

Parameters
Parameters
Length l3 (mm) min.:
17
Length l4 (mm):
55
Length l7 (mm):
13
Material:
steel-steel
Radius r (mm):
0,3
Diameter D (mm):
32.5
Diameter d2 (mm):
33
Diameter d4 (mm):
17
Diameter dk (mm):
18
Pitch N (mm):
33
Pitch N1 (mm):
16
Width C1 (mm):
11
Type:
articulated head
Angle (°):
4
Height h1 (mm):
38
Thread G:
M 12x1.25
Designation:
SIQG 12 ESA
