SKF SILKB 12 F Gelenkkopf
€28,34
Unit price
/
Unavailable
Description
Description

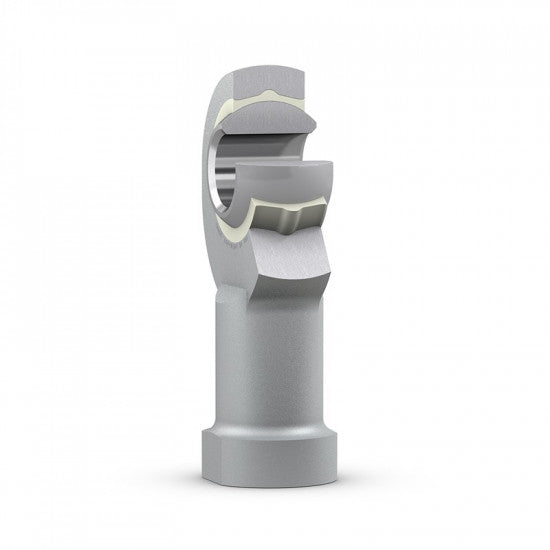

SILKB 12 F SKF Gelenkkopf
Parameters
Parameters

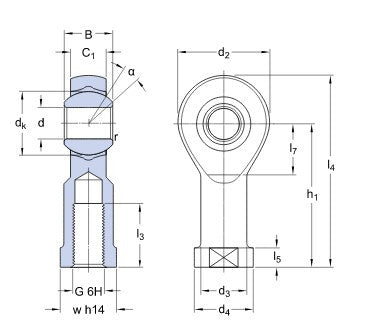

Length l3 (mm) min.:
18
Length l4 (mm):
68
Length l5 (mm):
6.5
Length l7 (mm):
16
Material:
steel- PTFE FRP
Radius r (mm):
0,3
Diameter D (mm):
33
Diameter d2 (mm):
33
Diameter d3 (mm):
17,5
Diameter d4 (mm):
23
Diameter dk (mm):
22,2
Width C1 (mm):
12,5
Maximum temperature °C:
+ 75
Minimum temperature °C:
- 40
Type:
articulated head
Angle (°):
13
Height h1 (mm):
50
Thread G:
M 12 left-handed
Designation:
SILKB 12 F
