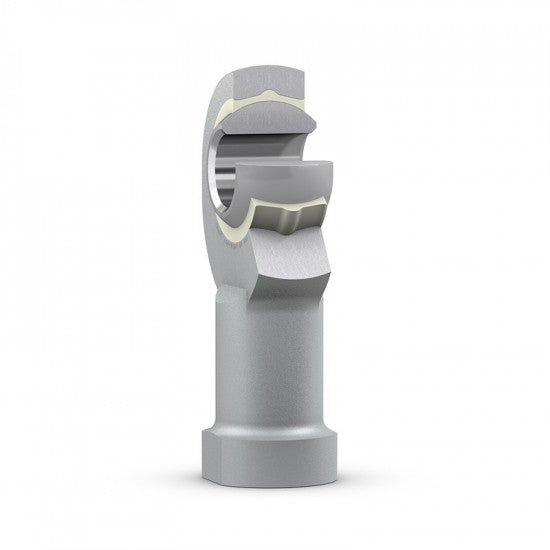

SKF SIKB 5 F Gelenkkopf, Innengewinde rechts, Stahl/PTFE FRP
€14,83
Unit price
/
Unavailable
Description
Description
SKF SIKB 5 F Gelenkkopf, Innengewinde rechts, Stahl/PTFE FRP

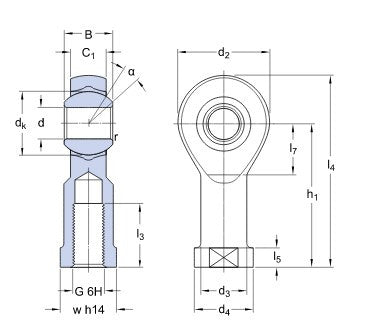

Parameters
Parameters
Length l3 (mm) min.:
8
Length l4 (mm):
38
Length l5 (mm):
4
Length l7 (mm):
9
Material:
steel- PTFE FRP
Radius r (mm):
0,3
Diameter D (mm):
5
Diameter D (mm):
19
Diameter d2 (mm):
19
Diameter d3 (mm):
9
Diameter d4 (mm):
12
Diameter dk (mm):
11,1
Width C1 (mm):
7,5
Maximum temperature °C:
+ 75
Minimum temperature °C:
- 40
Type:
articulated head
Angle (°):
13
Height h1 (mm):
27
Thread G:
M 5
Designation:
SIKB 5 F
