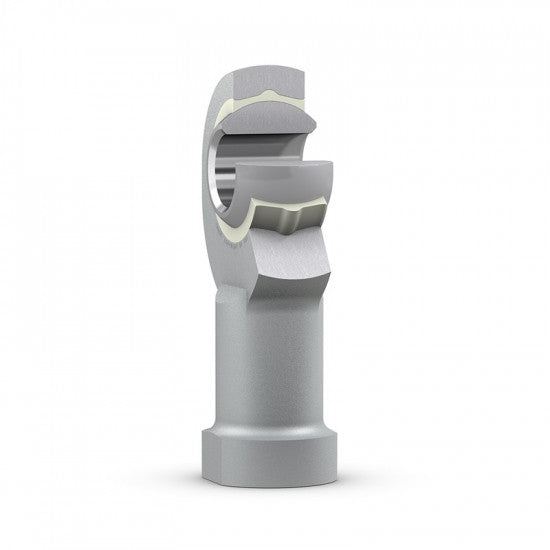

SKF SIKB 20 F Gelenkkopf, Innengewinde rechts, Stahl/PTFE FRP
€78,50
Unit price
/
Unavailable
Description
Description
SKF SIKB 20 F Gelenkkopf, Innengewinde rechts, Stahl/PTFE FRP
Parameters
Parameters

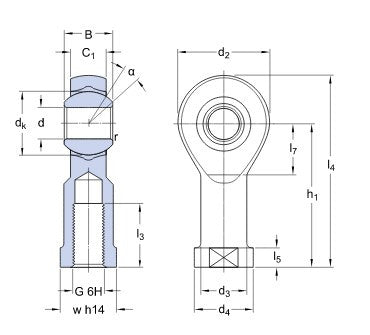

Length l3 (mm) min.:
30
Length l4 (mm):
105
Length l5 (mm):
10
Length l7 (mm):
25
Material:
steel- PTFE FRP
Radius r (mm):
0,3
Diameter D (mm):
51
Diameter d2 (mm):
51
Diameter d3 (mm):
27,5
Diameter d4 (mm):
37
Diameter dk (mm):
34,9
Width C1 (mm):
18,5
Maximum temperature °C:
+ 75
Minimum temperature °C:
- 40
Type:
articulated head
Angle (°):
14
Height h1 (mm):
77
Thread G:
M 20x1.5
Designation:
SIKB 20 F
