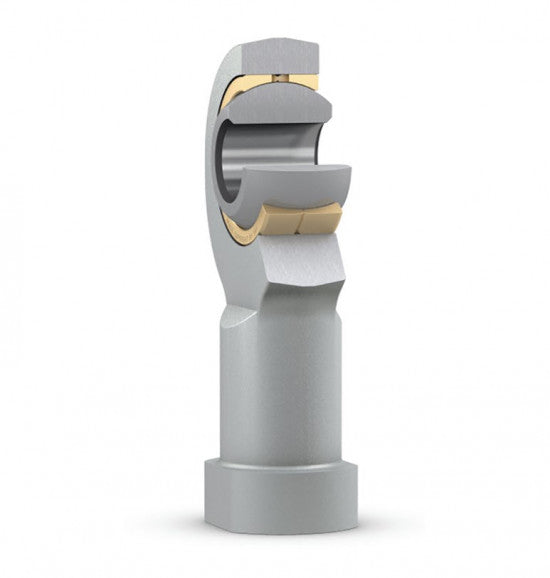

SIKAC 30 M SKF Gelenkkopf
Parameters
Parameters

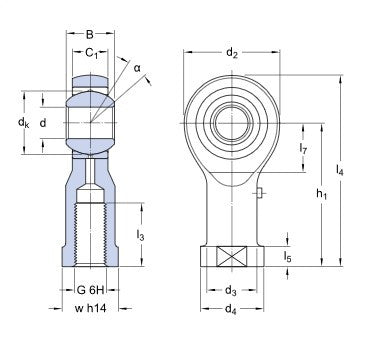

Length l3 (mm) min.:
45
Length l4 (mm):
146
Length l5 (mm):
15
Length l7 (mm):
35
Material:
steel-steel
Radius r (mm):
0,3
Diameter D (mm):
71
Diameter d2 (mm):
71
Diameter d3 (mm):
40
Diameter d4 (mm):
52
Diameter dk (mm):
50,8
Width B (mm):
37
Width C1 (mm):
27
Type:
articulated head
Angle (°):
17
Height h1 (mm):
110
Thread G:
M 30x2
Designation:
SIKAC 30 M
