SKF SI 70 TXE-2LS Gelenkkopf
€726,97
Unit price
/
Unavailable
Description
Description

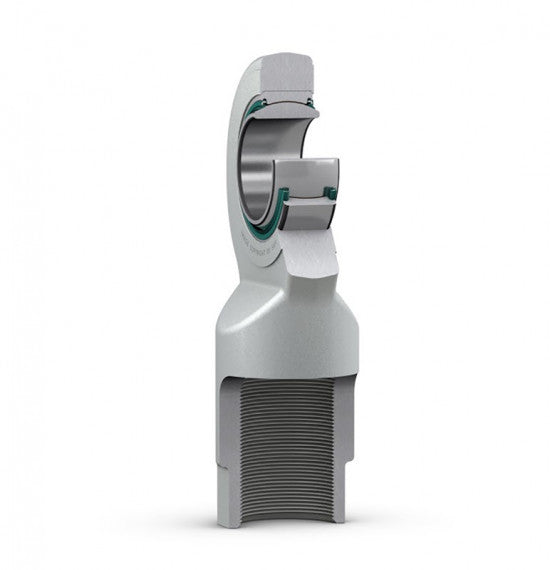

SI 70 TXE-2LS SKF Gelenkkopf

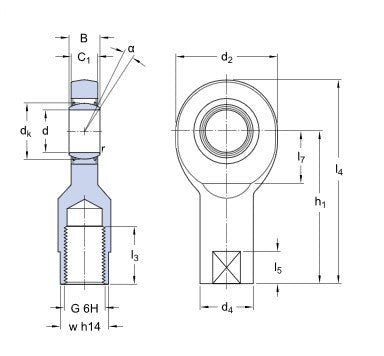

Parameters
Parameters
Length l3 (mm) min.:
80
Length l4 (mm):
349
Length l5 (mm):
40
Length l7 (mm):
80
Material:
steel-PTFE fabric
Radius r (mm):
1
Diameter D (mm):
162
Diameter d2 (mm):
162
Diameter d4 (mm):
92
Diameter dk (mm):
92
Width B (mm):
49
Width C1 (mm):
43
Type:
articulated head
Angle (°):
6
Height h1 (mm):
265
Thread G:
M72x4
Designation:
SI 70 TXE-2LS
