SKF PSMF 121810 A51 Sliding Flanged Bearing, Sintered Bronze
€2,15
Unit price
/
Unavailable
Description
Description

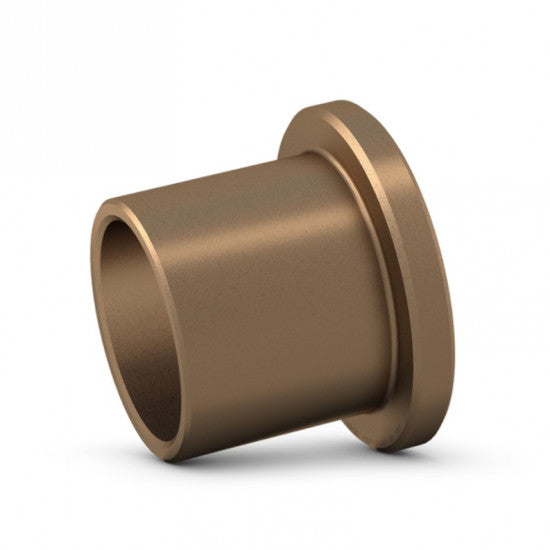

PSMF 121810 A51 is a sliding flanged bearing made of sintered bronze. Sintered bronze is a porous material with a pore volume of approximately 28%, which are filled with mineral oil. Therefore, the bearing is suitable for use in maintenance-free applications at temperatures ranging from -10 to +90°C.
Parameters
Parameters
Material:
slotted bronze
Diameter D (mm):
12
Diameter D (mm):
18
Diameter d1 (mm):
24
Width B (mm):
10
Width B1 (mm):
3
Maximum temperature °C:
+90
Minimum temperature °C:
-10
Type:
flanged sliding bushing made of sintered bronze
Designation:
PSMF 121810 A51
