SKF PRMF 808540 Flanged Sliding Bearing, Wound Bronze Strip
€46,95
Unit price
/
Unavailable
Description
Description

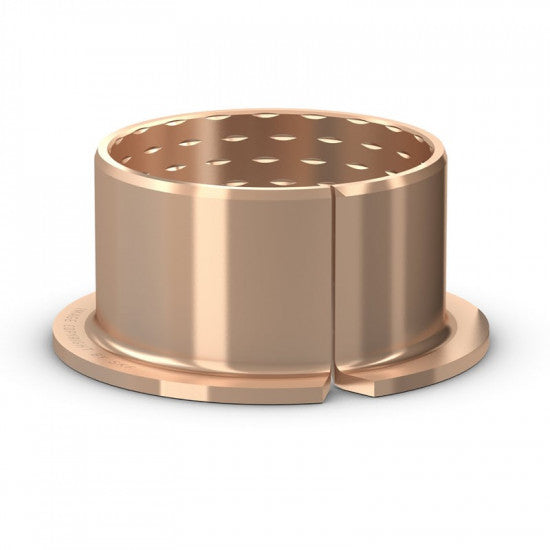

PRMF 808540 is a cylindrical flanged sliding bearing made from a wound bronze strip. The bronze strip is made from tin bronze CuSn8. Strips of this material are rolled into a cylinder and the working surface is equipped with rhombic pockets. These pockets then serve as reservoirs for lubricant. These bearings are suitable for both radial and axial movement and can withstand shock loads and vibrations well. They can be lubricated with oil or grease and are usable for temperatures ranging from -40°C to +150°C.80x85x40/100x2.5

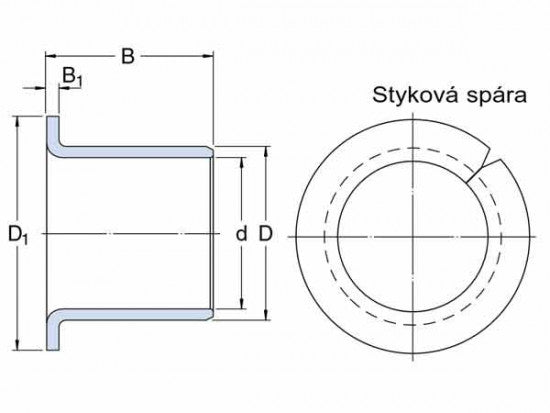

Parameters
Parameters
Material:
bronze
Diameter D (mm):
80
Diameter D (mm):
85
Diameter d1 (mm):
100
Width B (mm):
40
Width B1 (mm):
2,5
Maximum temperature °C:
+150
Minimum temperature °C:
-40
Type:
flanged sliding bushing made of sintered bronze strip
Designation:
PRMF 808540
