SKF PRMF 455045 Flanged Sliding Bearing, Rolled Bronze Strip
€14,67
Unit price
/
Unavailable
Description
Description

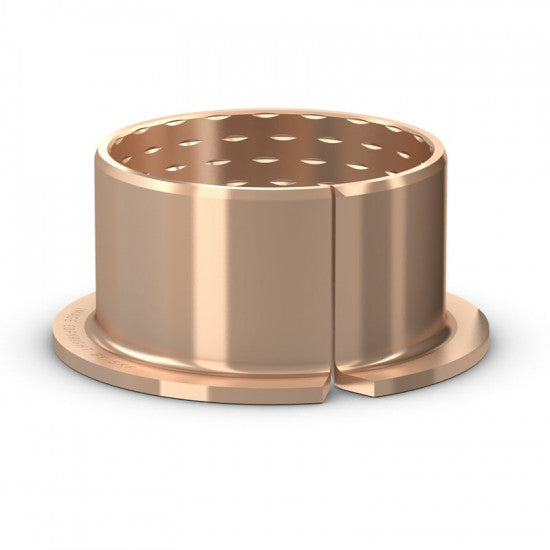

PRMF 455045 is a cylindrical flanged sliding bearing made from rolled bronze strip. The bronze strip is made of tin bronze CuSn8. Strips of this material are rolled into a cylinder, and the working surface is equipped with diamond-shaped pockets. These pockets serve as reservoirs for lubricant. These bearings are suitable for both radial and axial movement and can withstand shock loads and vibrations well. They can be lubricated with oil or grease and are usable for temperatures ranging from -40°C to +150°C. 45x50x45/60x2.5
Parameters
Parameters

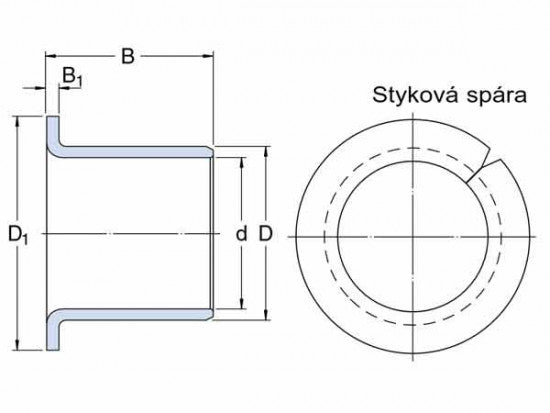

Material:
bronze
Diameter D (mm):
45
Diameter D (mm):
50
Diameter d1 (mm):
60
Width B (mm):
45
Width B1 (mm):
2,5
Maximum temperature °C:
+150
Minimum temperature °C:
-40
Type:
flanged sliding bushing made of sintered bronze strip
Designation:
PRMF 455045
