SKF PRM 505550 Sliding Bearing, Rolled Bronze Strip
€18,78
Unit price
/
Unavailable
Description
Description

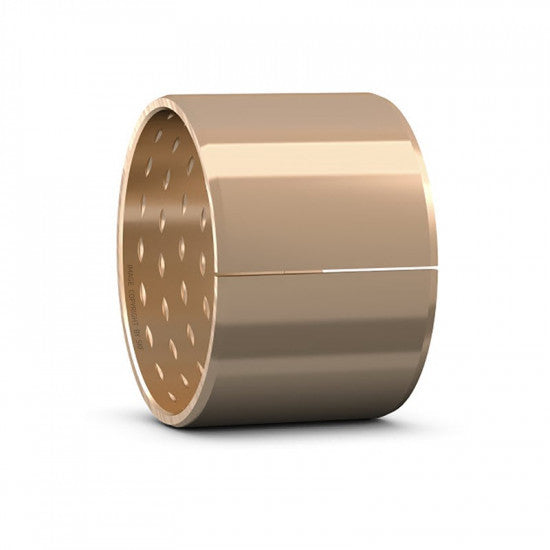

PRM 505550 is a cylindrical sliding bearing made from rolled bronze strip. The bronze strip is made from tin bronze CuSn8. Strips of this material are rolled into a cylinder, and the working surface is equipped with diamond-shaped pockets. These pockets serve as reservoirs for lubricant. These bearings are suitable for both radial and axial movement and can withstand shock loads and vibrations well. They can be lubricated with oil or grease and are usable for temperatures ranging from -40°C to +150°C. 50x55x50

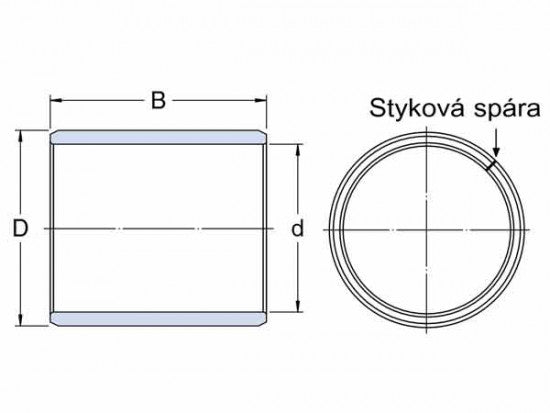

Parameters
Parameters
Material:
bronze
Diameter D (mm):
50
Diameter D (mm):
55
Width B (mm):
50
Maximum temperature °C:
+150
Minimum temperature °C:
-40
Type:
sliding bushing made of sintered bronze strip
Designation:
PRM 505550
