SKF PRM 161820 Sliding Bearing, Rolled Bronze Strip
€2,20
Unit price
/
Unavailable
Description
Description

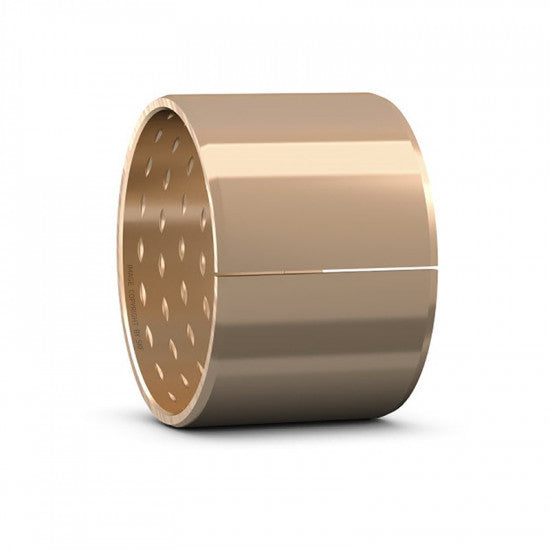

PRM 161820 is a cylindrical sliding bearing made from rolled bronze strip. The bronze strip is made of tin bronze CuSn8. Strips of this material are rolled into a cylinder, and the working surface is equipped with rhombic pockets. These pockets serve as reservoirs for lubrication. These bearings are suitable for both radial and axial movement and can withstand shock loads and vibrations well. They can be lubricated with oil or grease and are usable for temperatures ranging from -40°C to +150°C. 16x18x15
Parameters
Parameters

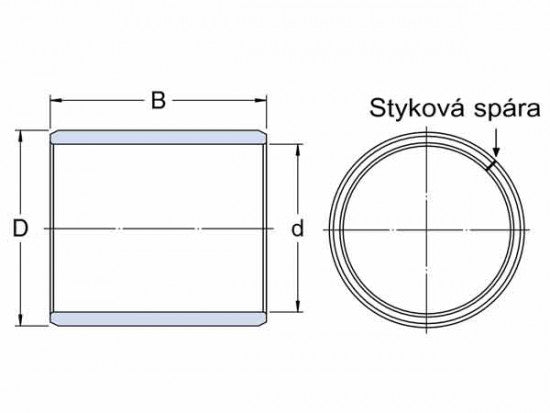

Material:
bronze
Diameter D (mm):
16
Diameter D (mm):
18
Width B (mm):
20
Maximum temperature °C:
+150
Minimum temperature °C:
-40
Type:
sliding bushing made of sintered bronze strip
Designation:
PRM 161820
