SKF PCMF 202321.5 E sliding bearing flange, steel-PTFE/Pb
€3,04
Unit price
/
Unavailable
Description
Description
PCMF 202321.5 E is a sliding bearing made from rolled steel sheet with a Teflon working layer of PTFE. The bearings have high load capacity, very low friction, high sliding speed, and operate in a wide temperature range from -200 °C to +250 °C. They are suitable for operating conditions with high loads requiring maintenance-free operation. The sliding layer of the bearing based on PTFE partially transfers to the opposite surface after a short run-in period, creating a physically bound sliding film. However, regular lubrication improves their performance and extends their lifespan.

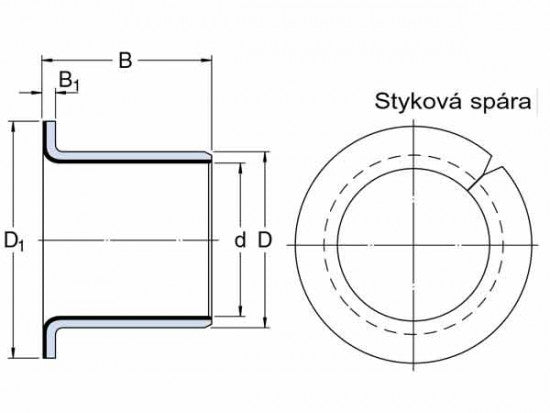

Parameters
Parameters
Diameter D (mm):
20
Diameter D (mm):
23
Diameter d1 (mm):
30
Width B (mm):
21,5
Width B1 (mm):
1,5
Type:
flanged sliding bushing with PTFE composite
Designation:
PCMF 202321.5 E
