SKF PCMF 121409 E Sliding Bearing Flanged, Steel-PTFE/Pb
€0,78
Unit price
/
Unavailable
Description
Description

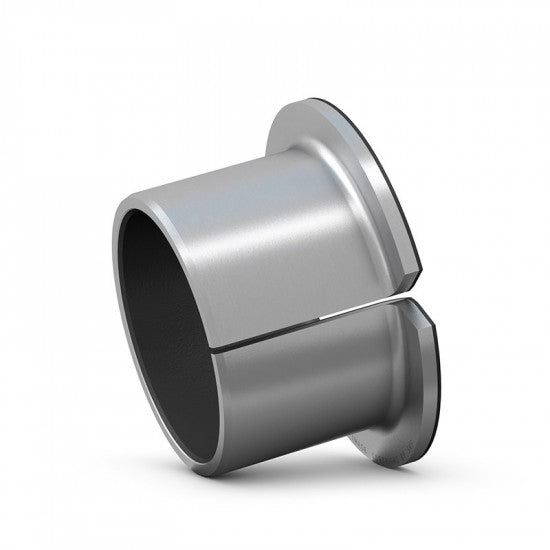

PCMF 121409 E is a sliding bearing made from rolled steel sheet with a PTFE working layer applied. The bearings have high load capacity, very low friction, high sliding speed, and operate in a wide temperature range from -200 °C to +250 °C. They are suitable for operating conditions with high loads requiring maintenance-free operation. The sliding layer of the bearing based on PTFE partially transfers to the opposite surface after a short run-in period, creating a physically bonded sliding film. However, regular lubrication improves their performance and extends their lifespan.
Parameters
Parameters

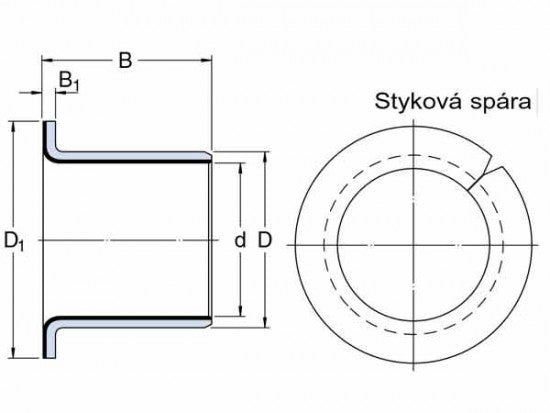

Diameter D (mm):
12
Diameter D (mm):
14
Diameter d1 (mm):
20
Width B (mm):
9
Width B1 (mm):
1
Maximum temperature °C:
+250
Type:
flanged sliding bushing with PTFE composite
Designation:
PCMF 121409 E
