SKF PCM 505530 E Sliding Bearing, Steel-PTFE
€8,54
Unit price
/
Unavailable
Description
Description

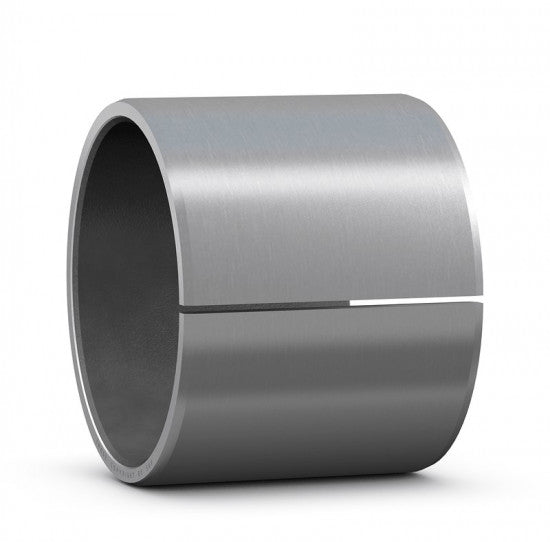

PCM 505530 E is a sliding bearing made from rolled steel sheet with a PTFE working layer applied. The bearings have high load capacity, very low friction, high sliding speed, and operate over a wide temperature range from -200 °C to +250 °C. They are suitable for operating conditions with high loads requiring maintenance-free operation. The sliding layer of the bearing based on PTFE partially transfers to the opposing surface after a short run-in, creating a physically bound sliding film. However, regular lubrication improves their performance and extends their lifespan.

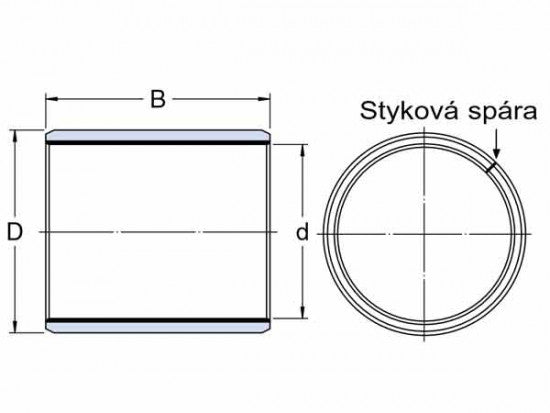

Parameters
Parameters
Material:
steel-PTFE
Diameter D (mm):
50
Diameter D (mm):
55
Width B (mm):
30
Maximum temperature °C:
+110
Minimum temperature °C:
-40
Designation:
PCM 505530 E
