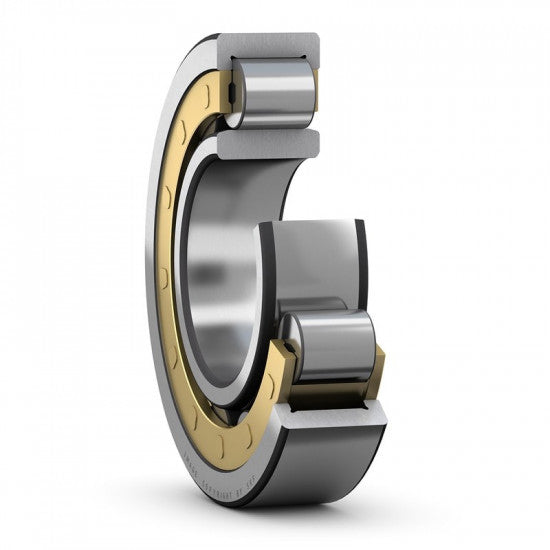

SKF NU 319 ECM/C4VA301 Roller Bearing
€435,22
Unit price
/
Unavailable
Description
Description
SKF NU 319 ECM/C4 - single-row, detachable radial roller bearing with a brass cage guided by rollers, higher load capacity, and with radial internal clearance greater than C3. The bearing can operate at temperatures up to +150°C. The outer ring of the bearing has two guiding flanges, while the inner one is without flanges, allowing axial displacement of the shaft relative to the housing in both directions. The rollers are guided by the flanges. The bearing can be split into the outer ring along with the cage and rollers, and the inner ring for easier assembly.
Parameters
Parameters
Cage:
Brass
Diameter D (mm):
95
Diameter D (mm):
200
Width B (mm):
45
Clearance:
C4
Designation:
NU 319 ECM/C4VA301
