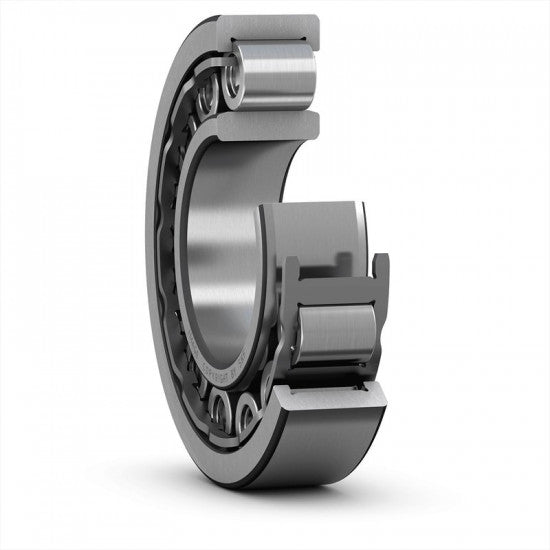

SKF NU 309 ECJ/C3 Roller Bearing

SKF Explorer NU 309/C3 ECJ - single-row, detachable radial roller bearing with a pressed steel window cage guided by rollers, higher load capacity, and radial internal clearance greater than normal. The bearing can operate at temperatures up to +150°C. The outer ring of the bearing has two guiding flanges, while the inner one is without flanges, allowing for axial displacement of the shaft relative to the housing in both directions. The rollers are guided by flanges. The bearing can be disassembled for easier installation into an outer ring along with the cage and rollers and an inner ring. SKF Explorer class bearings represent a new class of high-performance rolling bearings, offering a significant increase in key operating parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to the P6 accuracy class.
