SKF NJ 2204 ECP Roller Bearing
€29,70
Unit price
/
Unavailable
Description
Description

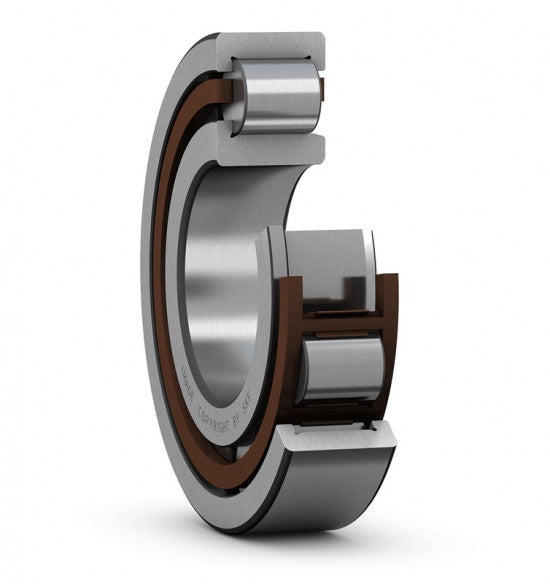

SKF NJ 2204 ECP - single-row detachable radial roller bearing with an injected window cage made of polyamide 6.6 reinforced with glass fibers, featuring higher load capacity and normal radial internal clearance. The bearing can operate at temperatures up to +120°C.
The outer ring of the bearing has two guiding flanges and the inner ring has only one, allowing for axial displacement of the shaft relative to the housing in one direction. The rollers are guided by the flanges.
The bearing can be disassembled for easier installation into an outer ring along with the cage and rollers and an inner ring.
Parameters
Parameters
Diameter D (mm):
47
Width B (mm):
18
Designation:
NJ 2204 ECP
