SKF N 226 ECP Roller Bearing
€557,90
Unit price
/
Unavailable
Description
Description

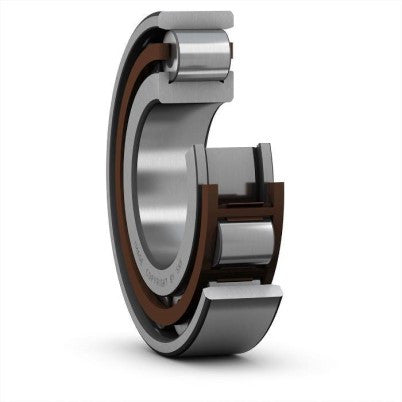

SKF N 226 ECP - single-row, dismountable radial roller bearing with a glass-fiber reinforced polyamide 6.6 window cage guided by rollers, offering higher load capacity and normal radial internal clearance.
The inner ring of the bearing has two guiding flanges, while the outer ring is without flanges, allowing for axial displacement of the shaft relative to the housing in both directions. The rollers are guided by the flanges.
The bearing can be disassembled for easier installation into the inner ring along with the cage and rollers and the outer ring.

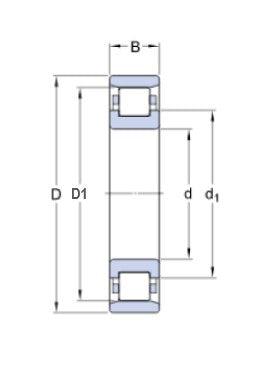

Parameters
Parameters
Cage:
Plastic
Diameter D (mm):
130
Diameter D (mm):
230
Width B (mm):
40
Type:
roller bearing
Designation:
N 226 ECP
