SKF N 203 ECP Roller Bearing
€35,57
Unit price
/
Unavailable
Description
Description

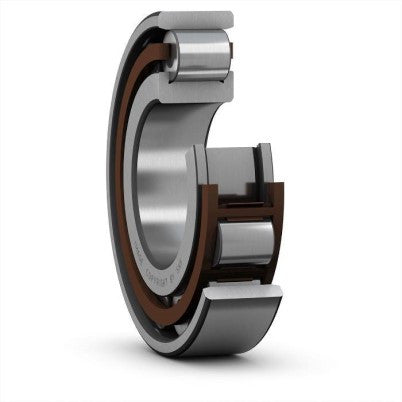

SKF N 203 ECP - single-row, detachable radial roller bearing with a polyamide 6.6 window cage reinforced with glass fibers, offering higher load capacity and normal radial internal clearance.
The inner ring of the bearing has two guiding flanges, while the outer ring is without flanges, allowing for axial displacement of the shaft relative to the housing in both directions. The rollers are guided by the flanges.
The bearing can be split into the inner ring along with the cage and rollers, and the outer ring for easier assembly.
Parameters
Parameters
Diameter D (mm):
17
Width B (mm):
12
Outer ring shape:
without groove / lubrication hole
Type:
roller bearing
Designation:
N 203 ECP
