SKF 7208 ACDGA/P4A Bearing

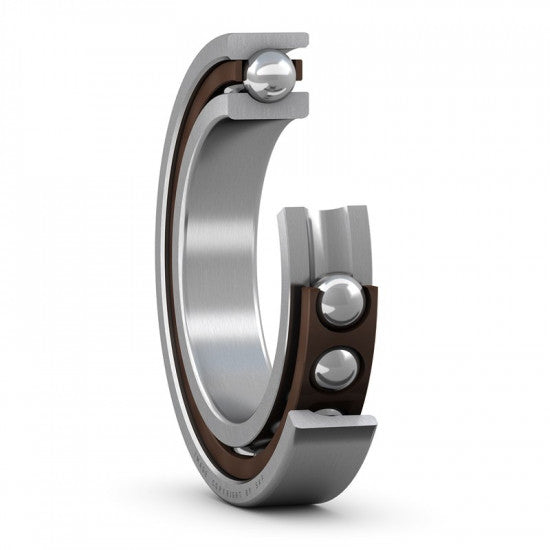

SKF 7208 ACDGA/P4A - precision non-disassemblable single-row angular contact ball bearing with a contact angle of 25°, featuring a light phenolic resin cage reinforced with textile fabric guided by the outer ring. It is universally pairable with light preload. The bearing can transmit axial load in only one direction, so it is usually set against a second bearing. The internal clearance of single-row angular contact ball bearings is achieved only after installation and depends on the adjustment of the axial position relative to the second bearing, which provides axial guidance in the opposite direction. Bearings for universal pairing are mounted in pairs and are manufactured to achieve a predetermined internal clearance or preload when assembled for axial load in one direction, i.e., in tandem, or for axial load in both directions, i.e., back-to-back in "O" or face-to-face in "X", without the use of shims.
