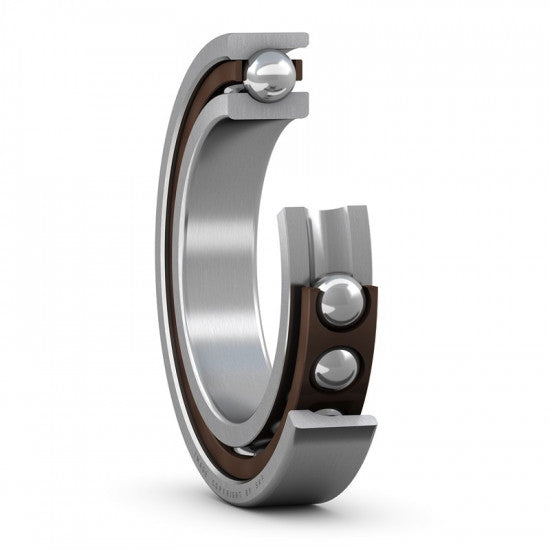

SKF 7006 CDGA/P4A Spindle Bearing

SKF 7006 CDGA/P4A - precision non-disassemblable single-row angular contact ball bearing with a contact angle of 15°, featuring a lightweight phenolic resin cage reinforced with textile fabric guided by the outer ring. Universally pairable with light preloading. The bearing can transmit axial loads in only one direction, which is why it is typically set against a second bearing. The internal clearance of single-row angular contact ball bearings is achieved only after installation and depends on the axial position adjustment relative to the second bearing, which provides axial guidance in the opposite direction. Bearings for universal pairing are mounted in pairs and are manufactured to achieve a predetermined internal clearance or preload when assembled for axial load in one direction (i.e., in tandem) or for axial load in both directions (i.e., back-to-back in "O" or face-to-face in "X") without the use of shims.
