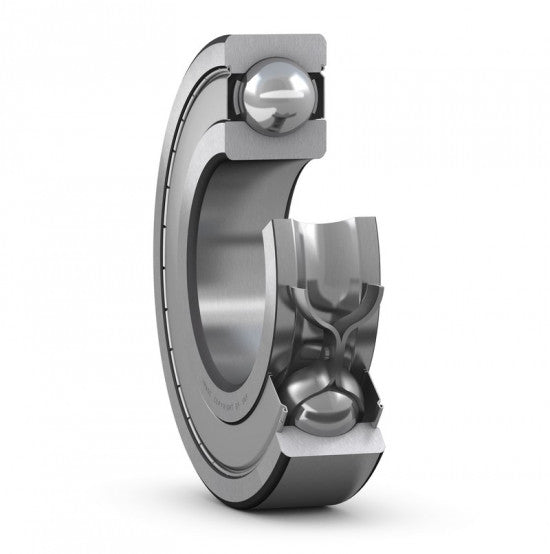

SKF 6308-2Z/C4WT Ball Bearing
€29,24
Unit price
/
Unavailable
Description
Description
SKF bearing 6308-2Z/C4WT - non-disassemblable single-row radial ball bearing for higher temperatures with a steel cage guiding the balls, featuring double-sided non-contact metal seals and higher radial clearance than C3. The cover plate of bearing 6308 2Z C4 WT fits against the smooth inner ring. The bearing 6308-2Z/C4WT is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -40°C to +160°C for the entire lifespan of the bearing. If the outer ring rotates, there may be a lubricant leakage at higher speeds.
Parameters
Parameters

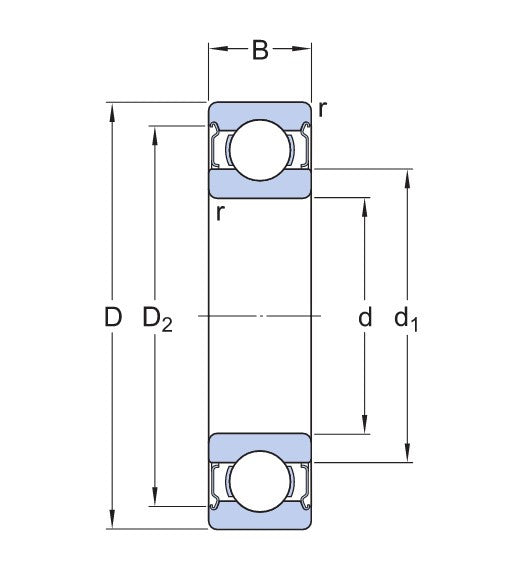

Diameter D (mm):
40
Diameter D (mm):
90
Width B (mm):
23
Maximum temperature °C:
+160
Clearance:
C4 - severely enlarged
Designation:
6308-2Z/C4WT
