SKF 628/7-2Z Ball Bearing
€6,86
Unit price
/
Unavailable
Description
Description

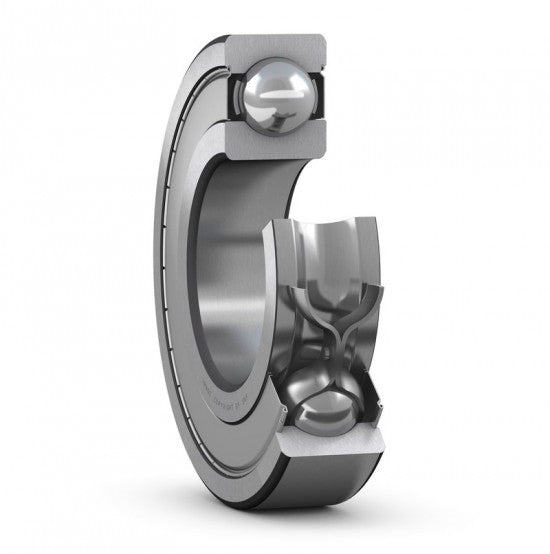

SKF bearing 628/7 2Z - non-disassemblable single-row radial ball bearing with a steel cage guided by balls with double-sided non-contact metal seals and normal radial clearance. The cover plates of the 628/7-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 628/7-2Z bearing is designed for mounting with a rotating inner ring and is filled with high-quality grease with a temperature range from -40°C to +100°C for the entire lifespan of the bearing. If the outer ring rotates, there may be a loss of grease at higher speeds.
The SKF 628/7-2Z bearing is referred to by manufacturers NSK, NTN, EZO as bearing 687 ZZ, 687 2Z.
Parameters
Parameters
Cage:
Steel
Material:
steel
Diameter D (mm):
14
Diameter D (mm):
7
Width B (mm):
5
Maximum temperature °C:
+120
Minimum temperature °C:
-20
Sealing:
double-sided cover, sheet metal
Outer ring shape:
without flange / groove
Type:
ball bearing
Clearance:
normal
Designation:
628/7-2Z
