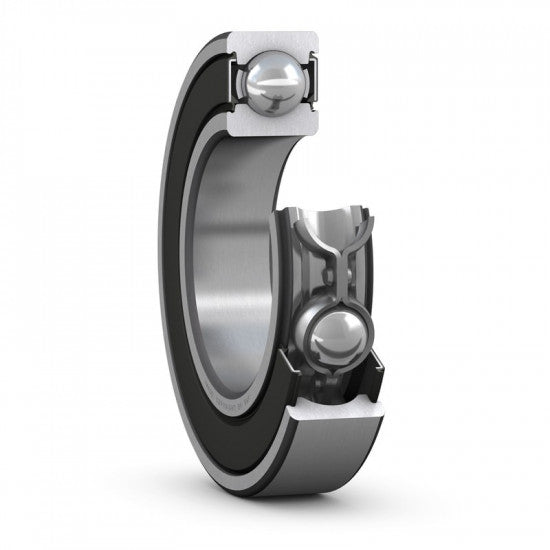

SKF 626-2RSH/C3 Ball Bearing
€2,14
Unit price
/
Unavailable
Description
Description
SKF Explorer bearing 626 2RSH C3 - non-separable single-row radial ball bearing with a steel cage guided by balls, featuring double-sided friction seals and a radial clearance greater than normal. The seals of bearing 626 2RS C3 are made of oil-resistant and wear-resistant rubber, which is vulcanized onto a metal reinforcement and pressed into grooves in the outer ring. The sealing edges rest against the edges of the grooves on the inner ring. The bearing 626-2RS C3 is filled with high-quality lubricant with a temperature range from -40°C to +100°C for the entire lifespan of the bearing.
SKF 626-2RSH/C3 Explorer class bearings represent a new group of high-performance rolling bearings, offering a significant increase in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to the accuracy class P6.
Parameters
Parameters
Cage:
Steel
Material:
steel
Diameter D (mm):
6
Diameter D (mm):
19
Width B (mm):
6
Maximum temperature °C:
+120
Minimum temperature °C:
-20
Sealing:
double-sided contact, rubber
Type:
ball bearing
Clearance:
C3 - slightly enlarged
Designation:
626-2RSH/C3
