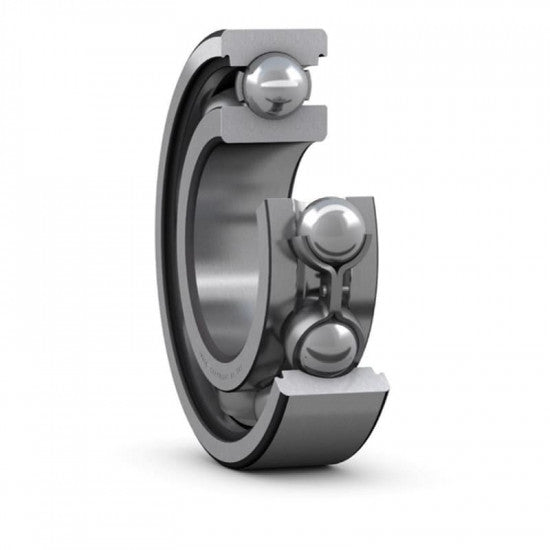

SKF bearing 6204/C5 - non-disassemblable single-row radial ball bearing open without seals with a steel cage and radial clearance greater than C4. The cage of the 6204 C5 bearing is guided by the balls.
Parameters
Parameters
Diameter D (mm):
20
Diameter D (mm):
47
Width B (mm):
14
Maximum temperature °C:
+120
Minimum temperature °C:
-20
Sealing:
without sealing
Outer ring shape:
without flange / groove
Clearance:
C5 - very highly enlarged
Designation:
6204/C5
