SKF 6200-2Z/C3 Ball Bearing
€2,00
Unit price
/
Unavailable
Description
Description

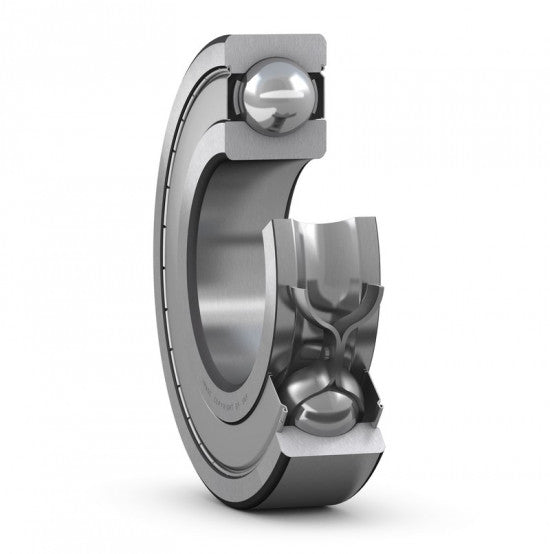

SKF Explorer bearing 6200 2Z C3 - non-disassemblable single-row radial ball bearing with a steel cage guiding the balls, featuring double-sided non-contact metal shields and higher radial clearance than normal. The shield plates of the 6200-2Z C3 bearing are pressed into grooves in the outer ring and fit against the smooth inner ring. The 6200 2Z C3 bearing is designed for mounting with a rotating inner ring and is filled with high-quality grease with a temperature range from -40°C to +100°C for the entire lifespan of the bearing. If the outer ring rotates, there may be a loss of grease at higher speeds.
SKF 6200-2Z/C3 Explorer class bearings represent a new group of high-performance rolling bearings, offering significant improvements in key operational parameters such as noise, vibration, heat generation, operational reliability, dynamic load capacity, and are manufactured with higher precision than normal. The dimensional accuracy corresponds to the precision class P6.
Parameters
Parameters
Cage:
Steel
Material:
steel

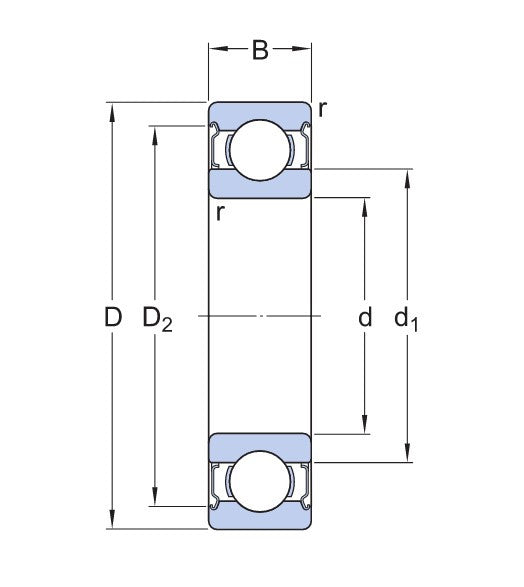

Diameter D (mm):
30
Diameter D (mm):
10
Width B (mm):
9
Maximum temperature °C:
+120
Minimum temperature °C:
-20
Sealing:
double-sided cover, sheet metal
Type:
ball bearing
Clearance:
C3 - slightly enlarged
Designation:
6200-2Z/C3
