SKF 2313 K/C3 Angular Contact Ball Bearing
€163,61
Unit price
/
Unavailable
Description
Description

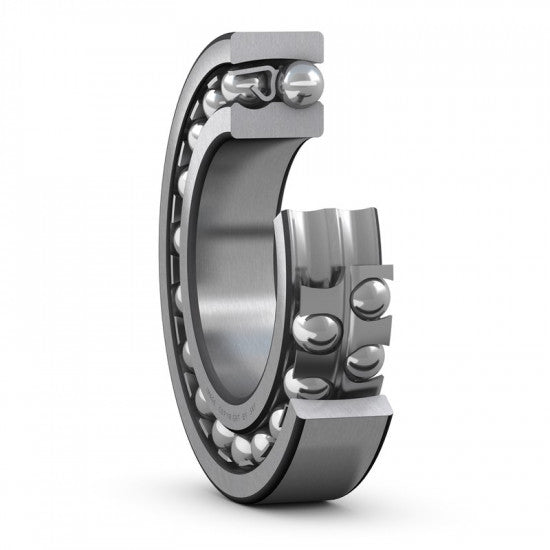

SKF 2313 K/C3 - non-disassemblable double-row angular contact ball bearing with a 1:12 tapered bore, pressed steel cage guided by two rows of balls, and with a radial clearance greater than normal.
The outer ring has a common spherical raceway for both rows of balls, allowing the bearing to tilt and compensate for misalignment or shaft deflection relative to the housing. The bearing is secured to a cylindrical shaft using a locking sleeve H 2313.

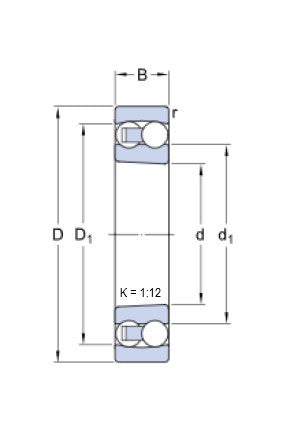

Parameters
Parameters
Hole profile:
conical (1:12)
Diameter D (mm):
65
Diameter D (mm):
140
Width B (mm):
48
Maximum temperature °C:
+150
Designation:
2313 K/C3
