SKF 2310 K/C3 Angular Contact Ball Bearing
€84,12
Unit price
/
Unavailable
Description
Description

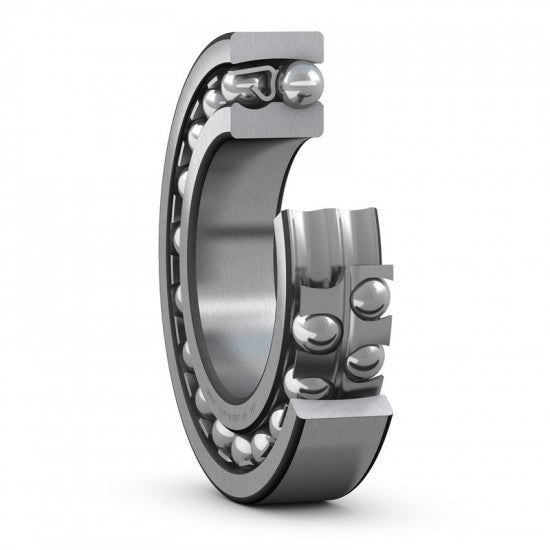

SKF 2310 K/C3 - non-disassemblable double-row angular contact ball bearing with a tapered bore 1:12, pressed steel cage guided by two rows of balls, and with radial play greater than normal.
The outer ring has a common spherical raceway for both rows of balls, allowing the bearing to tilt and compensate for misalignment or shaft deflection relative to the housing. The bearing is mounted on a cylindrical shaft using a locking sleeve H 2310.
Parameters
Parameters
Hole profile:
conical (1:12)
Diameter D (mm):
50
Diameter D (mm):
110
Width B (mm):
40
Maximum temperature °C:
+150
Designation:
2310 K/C3
