SKF 2217 K Angular Contact Ball Bearing
€168,97
Unit price
/
Unavailable
Description
Description

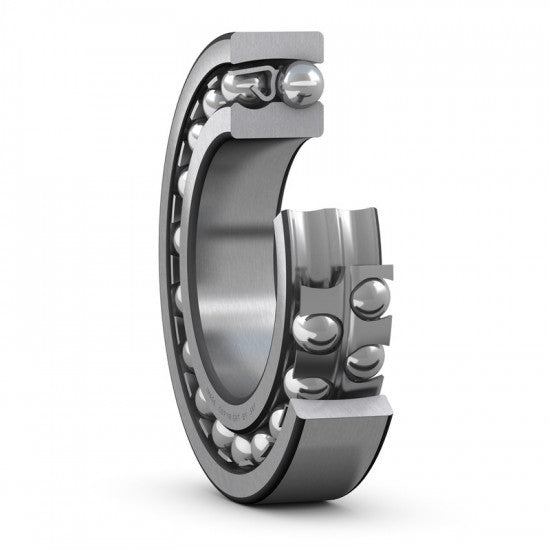

SKF 2217 K - non-disassemblable double-row angular contact ball bearing with a tapered bore 1:12, pressed steel cage guided by two rows of balls and with normal radial clearance.
The outer ring has a common spherical raceway for both rows of balls, allowing the bearing to tilt and compensate for misalignment or shaft deflection relative to the housing. The bearing is mounted on a cylindrical shaft using a locking sleeve H 317.
Parameters
Parameters
Hole profile:
conical (1:12)
Diameter D (mm):
85
Diameter D (mm):
150
Width B (mm):
36
Maximum temperature °C:
+150
Designation:
2217 K
