SKF 1209 EKTN9 Angular Contact Ball Bearing
€27,39
Unit price
/
Unavailable
Description
Description

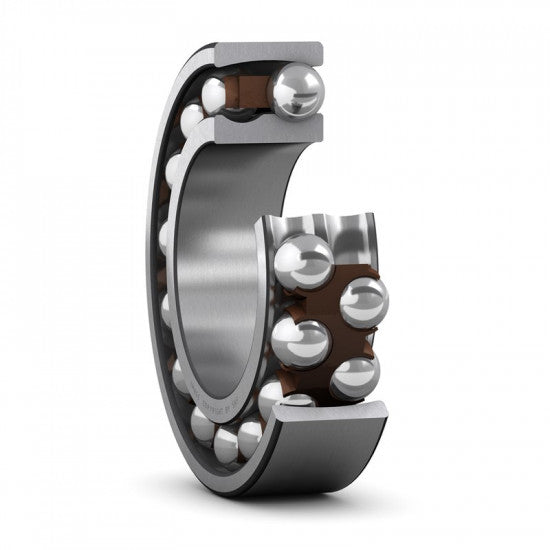

SKF 1209 EKTN9 - non-disassemblable double-row angular contact ball bearing with a tapered bore 1:12, optimized internal design, plastic cage made of reinforced polyamide 6.6 with glass fibers guiding two rows of balls and with normal radial clearance.
The outer ring has a common spherical raceway for both rows of balls, allowing the bearing to tilt and compensate for misalignment or shaft deflection relative to the housing. The bearing can operate at temperatures up to +120°C.
The bearing is mounted on a cylindrical shaft using a H 209 locking sleeve.
Parameters
Parameters
Hole profile:
conical
Diameter D (mm):
45
Diameter D (mm):
85
Width B (mm):
19
Minimum temperature °C:
-30
Type:
tilting ball bearing
Designation:
1209 EKTN9
