Illustrative photo
Hypertherm | SKU:
087197

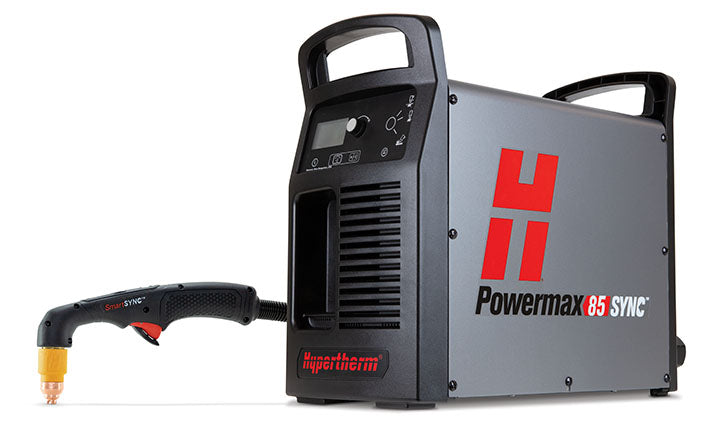

Powermax85 SYNC Plasma Cutting Machine, 15m Hand Torch
Sold out
This product is available on order. Please inquire about current price and availability at: p.folta@intercut.cz
€9.999,00
Unit price
/
Unavailable
Shipping calculated at checkout.
Description
Description
.png)
Product Specifications
Torches
Powermax 85 SYNC (input voltage 400 V, 3 phases, CE certification)
| Hand Torch 75° | ||
|---|---|---|
|
Power Sources |
7.6 m | 15.2 m |
| Current source with CPC port and voltage divider | 087198 | 087199 |
| Long Machine Torch 180° 7.6 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Current source with CPC port and voltage divider | 087201 | 087202 | |
| Current source with CPC port, voltage divider, and serial port | 087205 | ||
| Long Machine Torch 180° 15.2 m | |||
|---|---|---|---|
| Power Sources | with remote control hanging panel | without remote control hanging panel | |
| Current source with CPC port and voltage divider | 087203 | ||
| Current source with CPC port, voltage divider, and serial port | 087206 | ||
.png)
| Power | Thickness | Cutting Speed |
|---|---|---|
| Recommended | 25 mm | 500 mm/min |
| 32 mm | 250 mm/min | |
| Separation (manual cutting) | 38 mm | 125 mm/min |
| Piercing | 20 mm |
Cartridges
.png)
Maximum Productivity
- Work operations are completed faster due to cutting speeds that are 5 times higher than oxy-fuel for carbon steel of 12 mm thickness.
- Excellent cut quality and grooving saves time on grinding and edge preparation.
- Cutting time is maximized at a permissible 100% duty cycle.
Low Operating Costs
- By extending the lifespan of consumable parts, costs can be reduced by up to four times compared to other systems with this current range.
- Electrode end-of-life detection protects the torch and workpiece from damage caused by automatic power interruption when the electrode reaches the end of its life.
Ease of Use in Cutting and Grooving
- No need to change air pressure. Smart Sense™ technology ensures consistently correct settings.
- Allows for various types of work using a multifunctional, easy-to-operate torch.
Designed and Tested to Withstand the Toughest Conditions
- Duramax™ Hyamp torches are designed to withstand heavy impacts and high temperatures.
- SpringStart™ technology ensures stable starting and higher torch reliability.
- Maximum uptime with low maintenance.
Product Range Overview
| Cutting Performance | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Recommended | 10 mm | 10 mm | 10 mm | 20 mm | 25 mm | 32 mm | 38 mm |
| Separation | 16 mm | 16 mm | 16 mm | 32 mm | 38 mm | 50 mm | 57mm |
| Output Range | 15-30 | 15-30 | 15-30 | 20-65 | 25-85 | 30-105 | 30-125 |
| Input Phases | Single | Single | Three | Three | Three | Three | Three |
| Application Options | Powermax30 XP | Powermax30 AIR | Powermax45 XP | Powermax65 SYNC | Powermax85 SYNC | Powermax105 SYNC | Powermax125 |
|---|---|---|---|---|---|---|---|
| Machine Cutting | ● | ● | ● | ● | ● | ||
| Drag Cutting | ● | ● | ● | ● | ● | ||
| FineCut | ● | ● | ● | ● | ● | ● | ● |
| Marking | ● | ● | |||||
| Precision Grooving | ● | ||||||
| Maximum Grooving Control | ● | ● | ● | ● | ● | ||
| Grooving with Maximum Removal | ● | ● | ● | ● | |||
| HyAccess™ | ● | ● | ● | ● | ● | ● | |
| FlushCut™ | ● | ● | ● | ● | ● |
Parameters
Parameters
Cutting:
16 mm
Cutting (manual cutting):
38 mm
Recommended:
25 mm, 32 mm, 10 mm
FineCut:
●
HyAccess™:
●
Burn-through:
20 mm
Power source with CPC port and voltage divider:
087198, 087201
Power source with CPC port, voltage divider and serial port:
{"value":""}
Input phase:
One
Output range:
15-30
Marking:
●
