Description

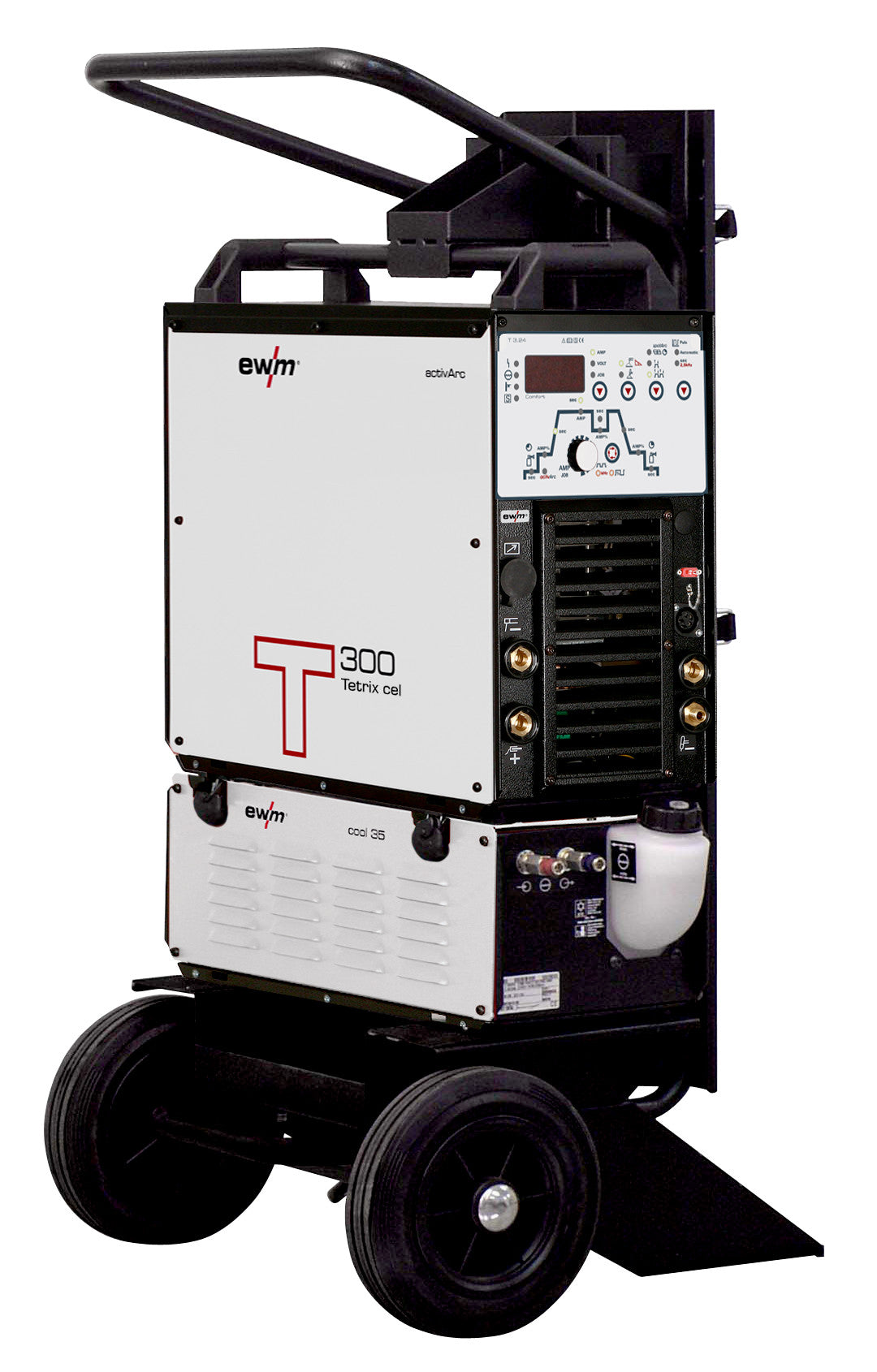

- Modular inverter welding machine WIG DC, gas or water cooling
- Equipped with features for EWM activArc and EWM spotArc at no extra charge
- WIG welding with reproducible, electronic HF ignition
- WIG-Liftarc welding without HF
- WIG pulse automation with automatic input of required pulse parameters
- 2-stroke/4-stroke mode
- Clear user interface, meaningful reduction of controls to the most important functions
- Reduced secondary current triggered via the torch button
- Spot welding/stitching function (spotArc/Spotmatic)
- Adjustable current rise/fall time
- Spotmatic - saves 50% time during spot welding
- Adjustable pre-flow gas/post-flow gas
- Manual welding with coated electrode
- Automatic pulsing of manual electrode welding with automatically preset required pulse parameters
- Ideal for root welding
- Antistick function
- Safe welding in vertical position from top to bottom and bottom to top
- Adjustable current and hot start time
- Adjustable Arcforce
- Safe ignition even with long hose bundles
- Gas-cooled or optionally water-cooled with cooling module cool 35 U31
- Very good cooling of the torch, thus saving costs on consumables due to a powerful rotary pump and a 4.5-liter water tank (cooling module cool35 U31)
- Saves current thanks to high efficiency and standby function
- High tolerance to mains voltage, thus unlimited capability for generator operation
- Possibility to connect a remote control and functional torch
- Option to supply a trolley Trolly 35.2-2
- Connection to the network 3x400 V/16 A
- Further functions of individual controls can be found in the control overview
Parameters:
- Mains voltage (tolerance) 3 x 400 V (-25 % - +20 %)
- Mains fuse (slow) 3 x 16 A
- No-load voltage 98 V
- Welding current adjustment range 5 A - 300 A
- Permissible load 40 °C 300 A / 60 %, 250 A / 100 %
- cos φ 0.99
- Efficiency 88 %
- Dimensions LxWxH in mm 590 x 230 x 380
- Weight 29 kg
- Dimensions of cooling module in mm 650 x 270 x 225
- Weight of cooling module 15 kg
- Dimensions of transport trolleys in mm 600 x 580 x 1200
- Weight of transport trolleys 34 kg
Included in the set is, among other things, a cooling module with a rotary pump, water-cooled WIG welding torch, fully assembled grounding cables with clamp, gas hose, pressure regulator for gas cylinder, and 9.6 liters of coolant.
