Description
Description

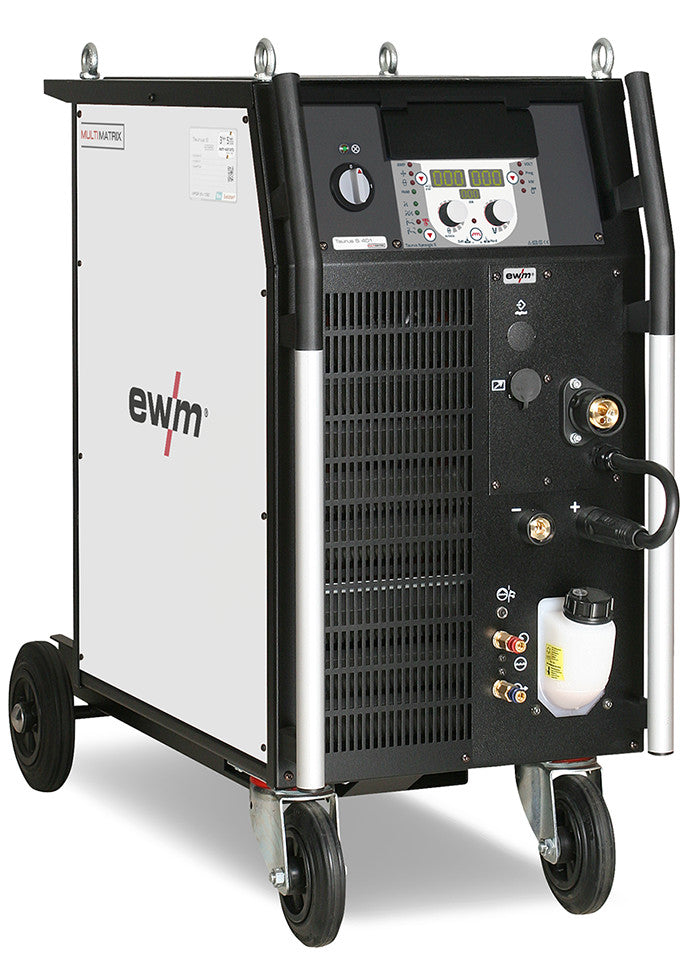

- Compact MIG/MAG welding machine with water cooling, Basic control, and integrated
- wire feed drive
- Manual operation using two knobs (welding voltage and wire speed)
- Suitable for welding steel/CrNi/aluminum in protective gas without extra charge
- Suitable for manual welding with coated electrodes and grooving without extra charge
- Continuously adjustable welding arc dynamics (reactor effect)
- High power reserves due to high permissible load and thus lower heating of all components guarantee longer service life in practice
- Highly precise, powerful 4-roller wire feed drive EWM eFeed for safe feeding of all solid and cored wires
- Equipped for steel wire 1.2 mm
- Wire spool diameter up to 300 mm/D300, 200 mm/D200 possible via adapter
- Very good torch cooling, thus saving costs on consumable parts of the torch due to a powerful rotary pump and 12-liter water tank
- Saves power thanks to high efficiency and standby function
- Simple polarity change for welding without tools
- Ground short circuit control (PE protection)
- High tolerance of network voltage, thus unlimited capability for generator operation
- Option to connect a remote control and functional torch
| Network voltage (tolerance) | 3 x 400 V (-25 % - +20 %) |
| Network fuse (slow) | 3 x 32 A |
| No-load voltage | 80 V |
| Welding current adjustment range | 5 A - 500 A |
| Permissible load at 40 °C | 500 A / 60 %, 430 A / 100 % |
| cos φ | 0.99 |
| Efficiency | 90 % |
| Dimensions LxWxH in mm | 1100 x 455 x 1000 |
| Weight | 118 kg |
The price includes accessories; for inquiries, please submit a request.
Parameters
Parameters
cos φ:
0.99
Permitted load 40°C:
500 A / 60 %, 430 A / 100 %
Open-circuit voltage:
80 V
Dimensions LxWxH in mm:
1100 x 455 x 1000
Welding current adjustment range:
5 A - 500 A
Mains fuse (slow):
3 x 32 A
Mains voltage (tolerance):
3 x 400 V (-25 % - +20 %)
Efficiency:
90 %
Weight:
118 kg
