Description
Description

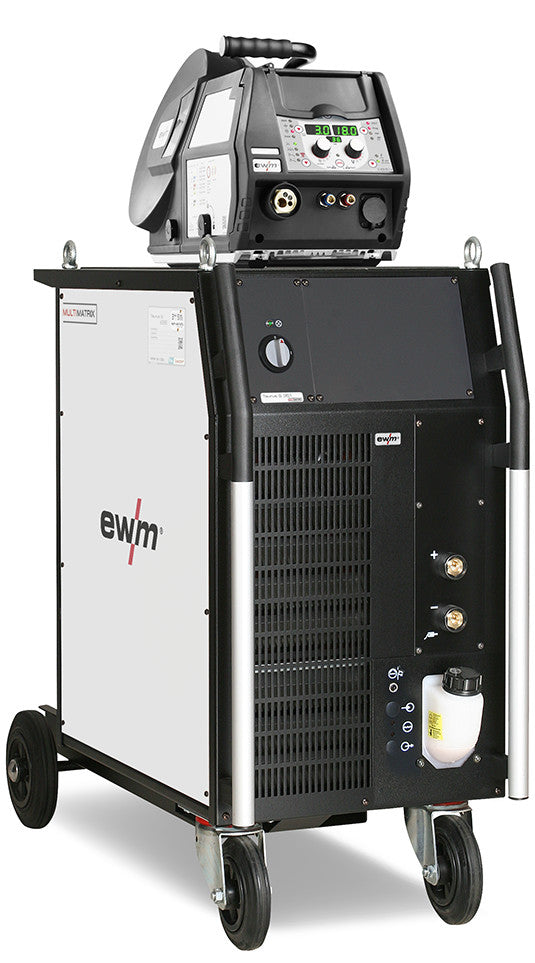

- Compact MIG/MAG welding machine with water cooling featuring one-button synergic control HP and integrated wire feed drive
- Excellent welding properties with Multimatrix
- Adjustable crater functions at the start and end of the weld
- Program run with 16 programs for each JOB
- Synergic or manual welding mode
- Equipped with synergistic characteristics certified according to ČSN EN 1090 for EWM forceArc, rootArc, and superPuls at no extra charge
- Equipped with synergistic characteristics for welding steel/CrNi/aluminum in protective gas (MSG) at no extra charge
- Suitable for manual welding with coated electrodes, TIG welding, and grooving at no extra charge
- Free WPQR package for certification including EXC2 according to ČSN EN 1090 and for welding unalloyed steels including S355
- Continuously adjustable welding arc dynamics (reactor effect)
- High power reserves due to high permissible load and thus lower heating of all components guarantee longer service life in practice
- Highly precise, strong 4-roller wire feed drive EWM eFeed for safe feeding of all solid and cored wires
- Equipped for steel wire 1.2 mm
- Wire spool diameter up to 300 mm/D300, 200 mm/D200 possible via adapter
- Very good torch cooling, thus saving costs on consumable parts of the torch due to a powerful rotary pump and a 12-liter water tank
- Saves power due to high efficiency and standby function
- Simple polarity change for welding without tools
- Ground short circuit control (PE protection)
- High tolerance of network voltage, thus unlimited capability for generator operation
- Option to connect a remote control and functional torch
- With Multimatrix technology, optionally connectable to LAN or Wi-Fi, capable for Xnet
- HP control can be easily swapped for LP control at any time
| Taurus | 351 | 401 | 451 | 551 |
| Network voltage (tolerance) | 3 x 400 V (-25 % - +20 %) | |||
| Network fuse (slow) | 3 x 25 A | 3 x 32 A | ||
| No-load voltage | 80 V | |||
| Welding current adjustment range | 5 A - 350 A | 5 A - 400 A | 5 A - 450 A | 5 A - 550 A |
| Permissible load 40 °C | 350 A / 100 % | 400 A / 100 % | 450 A / 80 %, 420 A / 100 % | 550 A / 60 %, 420 A / 100 % |
| cos φ | 0.99 | |||
| Efficiency grade | 90 % | |||
| Dimensions LxWxH in mm | 1100 x 455 x 1000 | |||
| Weight | 118 kg | 118 kg | 129 kg | 129 kg |
| Wire feed dimensions LxWxH in mm | 660 x 280 x 380 | |||
| Wire feed weight | 13 kg | |||
Price includes accessories; for inquiries, please submit a request.
Parameters
Parameters
cos φ:
0.99
Permitted load 40°C:
350 A / 100 %
Wire feeder weight:
13 kg
Open-circuit voltage:
80 V
Dimensions LxWxH in mm:
1100 x 455 x 1000
Wire feeder dimensions LxWxH in mm:
660 x 280 x 380
Welding current adjustment range:
5 A - 350 A
Mains fuse (slow):
3 x 25 A
Mains voltage (tolerance):
3 x 400 V (-25 % - +20 %)
Efficiency:
90 %
Taurus:
351
Weight:
118 kg
