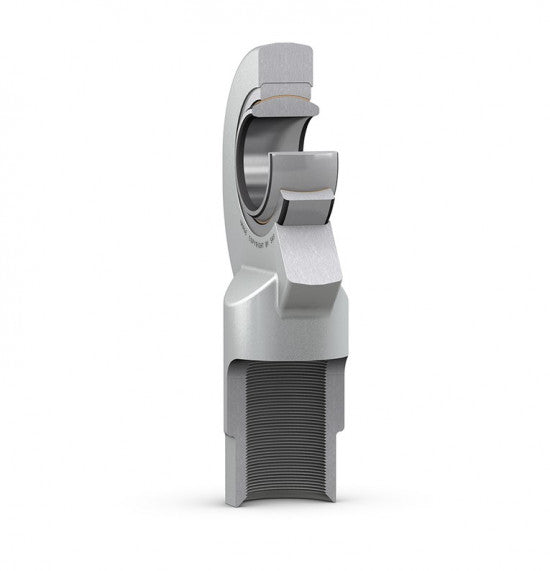

SKF SI 8 C Gelenkkopf
€26,63
Unit price
/
Unavailable
Description
Description
SKF SI 8 C Gelenkkopf

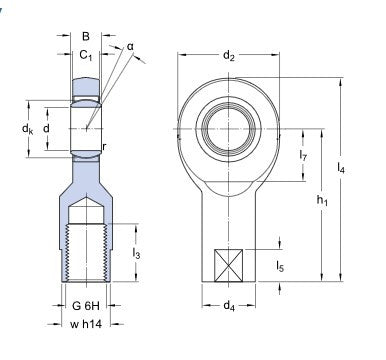

Parameters
Parameters
Length l3 (mm) min.:
15
Length l4 (mm):
50
Length l5 (mm):
9
Length l7 (mm):
11
Material:
steel/PTFE composite
Radius r (mm):
0,3
Diameter D (mm):
8
Diameter d2 (mm):
25
Diameter d4 (mm):
13
Diameter dk (mm):
13
Width C1 (mm):
6,5
Type:
articulated head
Angle (°):
15
Height h1 (mm):
36
Thread G:
M8
Designation:
SI 8 C
