SKF SI 50 TXE-2LS Gelenkkopf
€242,34
Unit price
/
Unavailable
Description
Description

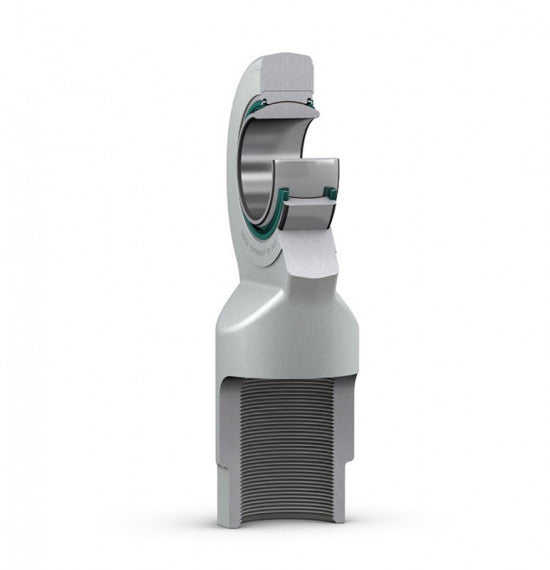

SI 50 TXE-2LS SKF Gelenkkopf

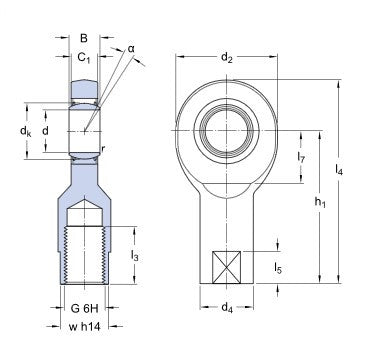

Parameters
Parameters
Length l3 (mm) min.:
68
Length l4 (mm):
254
Length l5 (mm):
30
Length l7 (mm):
60
Material:
steel-PTFE fabric
Radius r (mm):
0,6
Diameter D (mm):
114
Diameter d2 (mm):
114
Diameter d4 (mm):
70
Diameter dk (mm):
66
Width B (mm):
35
Width C1 (mm):
31
Type:
articulated head
Angle (°):
6
Height h1 (mm):
195
Thread G:
M52x3
Designation:
SI 50 TXE-2LS
